HELI CBD15/18/20J-LI-S ELECTRIC PALLET JACK

Designed for easy operation and maintenance, HELI’s Pallet Jack is equipped with a lithium-ion battery offering you a quicker recharge and longer run time, minimising your working downtime. This model is a great choice for streamlining your material handling process and increasing your efficiency in the workplace.

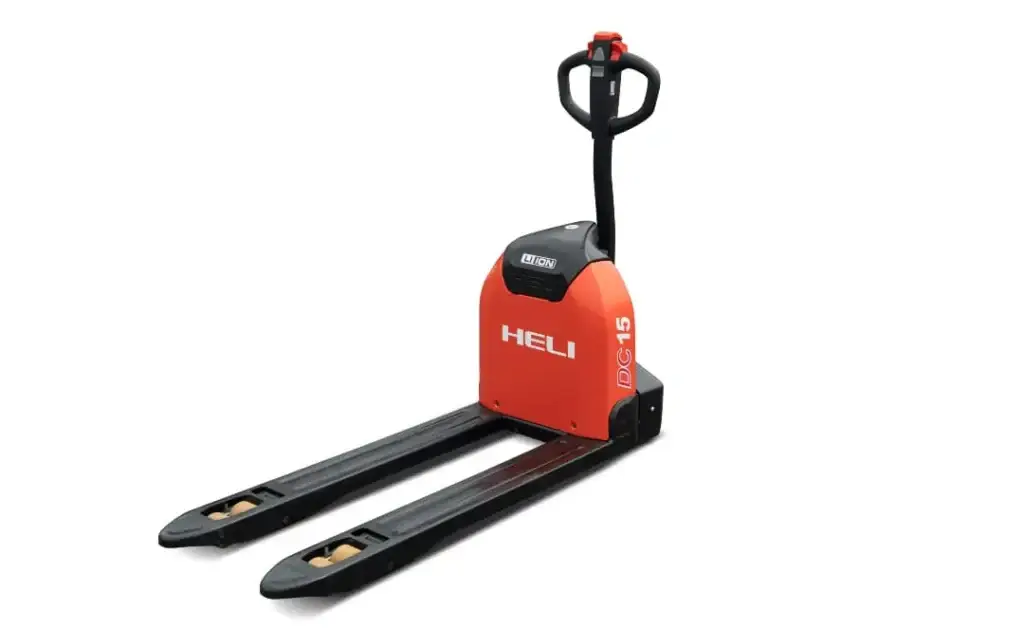

Heli CBD15/18/20J-LI-S electric pallet jacks with lift capacities from 1.5 to 2 tonnes

CHARACTERISTICS

BENEFITS

Utilises the same hydraulic pump as a hand pallet for simplicity and reliability. An integrated handle that combines the key and meter for straightforward and comfortable operation. Main components are encased in protective covers for safety, reliability, and ease of disassembly, facilitating convenient maintenance and repair. Features a portable lithium-battery pack for quick and effortless battery replacement.
Equipped with an emergency reversing device to enhance operational safety. Incorporates both magnetic and motor brakes to ensure secure driving.
Designed for simplicity, flexibility, and lightness, with a minimal turning radius, making the truck ideal for use in extremely narrow aisles. Offers multiple battery capacity options to accommodate various working conditions.

CBD15/18/20J-LI-S

Identification

Model CBD15J-LI-S CBD18J-LI-S CBD20J-LI-S
Rated capacity 1500 kg 1500 kg 2000 kg

Dimensions

Overall length 1603 mm 1603 mm 1603 mm
Overall width 550 / 685 mm 550 / 685 mm 550 / 685 mm
Fork dimensions 50 / 150 / 1150 mm 50 / 150 / 1150 mm 50 / 150 / 1150 mm

Performance

Travel speed (laden / unladen) 4.2 / 4.5 km/h 4.2 / 4.5 km/h 4.2 / 4.5 km/h
Max. gradeability (laden / unladen) 5 / 10% 5 / 10% 5 / 10%

PRODUCT FEATURES

A more energy efficient method for materials handling

Being both easy to manipulate through extremely narrow aisles and able to move a vast range of weight, HELI’s Pallet Jack will increase both your productivity and ease within the workplace.

  • 1500-2000kg lifiting capacity
  • Integrated handle with key and meter
  • Portable lithium electric bag, easy to open the cover and replace the battery
  • Simple, reliable and easy to operate
  • Light weight frame
  • Standard equipped with the emergency stop switch and emergency reverse device

GOT A QUESTION?

FREQUENTLY ASKED QUESTIONS

When choosing a pallet jack, consider factors such as weight capacity, wheel type (nylon, polyurethane, or rubber), fork length, and the height of the pallets you will be handling. It’s also important to consider the specific requirements of your warehouse or facility.
Pallet jacks are specifically designed for palletised loads. Attempting to lift non-palletised items can be unsafe and damage the load. It’s recommended to use appropriate equipment like hand trucks or carts for non-palletised items.
Yes, some pallet jacks are designed to operate in cold storage environments. It’s crucial to choose a pallet jack specifically rated for low-temperature use to prevent issues related to lubrication and materials becoming brittle in cold conditions.
Light pallet jacks typically have a limited lifting height, and they are not designed for high stacking. If you need to lift loads to different heights, consider using a pallet jack with adjustable forks or opt for other equipment designed for stacking at various heights.
