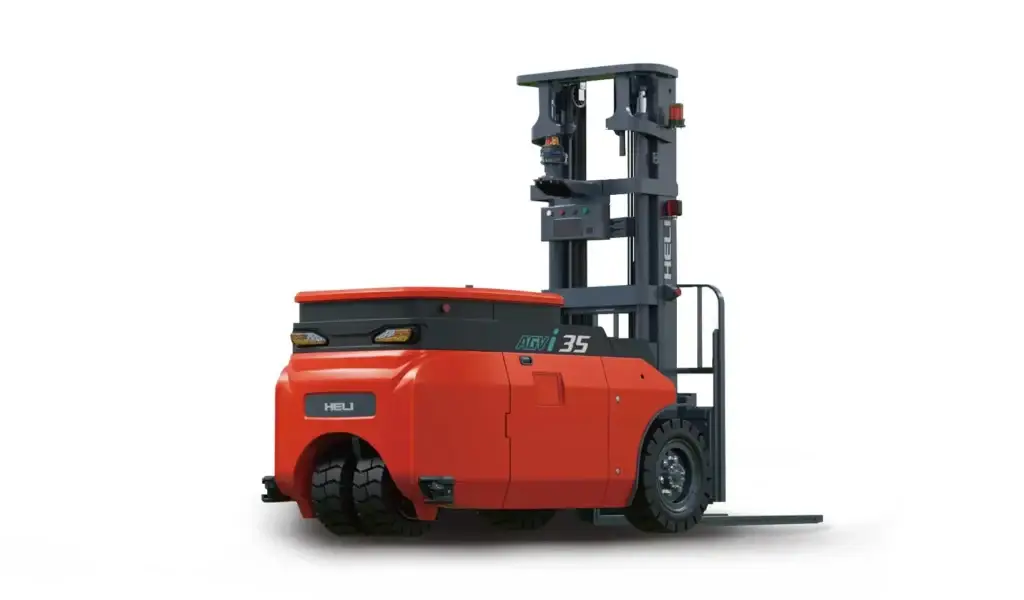

HELI 2.0-3.5t Counterbalanced AGV

I Series

CHARACTERISTICS

BENEFITS

Design

Suitable for logistics and warehousing systems, automated workshops, and warehouses, covering a wide range of indoor and outdoor applications. Equipped with multiple attachment points, supporting a wide range of optional accessories and allowing redundancy for future upgrades.

Performance and Handling

Equipped with three-point electric steering, featuring a smaller turning radius and enhanced maneuverability in tight spaces.

Operation and Efficiency

Charging port positioned on the vehicle side, allowing easy cable connection and convenient access during charging operations. Dual-side opening engine cover design, providing quick access to internal components for more convenient servicing and upkeep.

CPD20/25/30/35SQ - AGV1A1LI

Identification

Model	CPD20SQ-AGV1A1LI	CPD25SQ-AGV1A1LI	CPD30SQ-AGV1A1LI	CPD35SQ-AGV1A1LI
Rated capacity	2000 kg	2500 kg	3000 kg	3500 kg

Dimensions

Model	CPD20SQ-AGV1A1LI	CPD25SQ-AGV1A1LI	CPD30SQ-AGV1A1LI	CPD35SQ-AGV1A1LI
Rated capacity	2000 kg	2500 kg	3000 kg	3500 kg
Height	2025 mm	2430 mm	2430 mm	2430 mm
Length	3130 mm	3345 mm	3421 mm	3421 mm
Width	1180 mm	1262 mm	1223 mm	1223 mm

Performance

Navigation method	Laser Navigation with Reflectors	Laser Navigation with Reflectors	Laser Navigation with Reflectors	Laser Navigation with Reflectors
Max. travelling speed (loaded / unloaded)	7 / 7 km/h	7 / 7 km/h	7 / 7 km/h	7 / 7 km/h
Battery voltage / rated capacity	80 / 125 V/Ah	80 / 202 V/Ah	80 / 346 V/Ah	80 / 404 V/Ah
