HELI 2.0-3.8 TONNE H3 LPG/DIESEL FORKLIFT

H3 Series

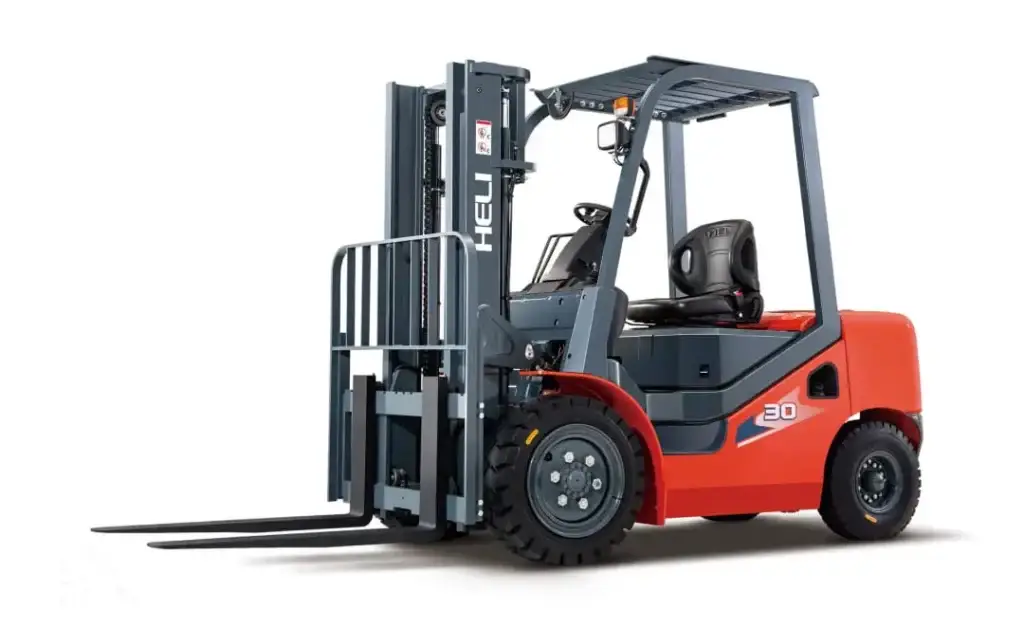

HELI H3 series 2 to 3.8t internal combustion forklifts

CHARACTERISTICS

BENEFITS

Vibration and noise levels are significantly reduced. Cushioned connections and a fully suspended driver’s cab effectively absorb the truck’s vibrations. Noise reduction is achieved by lowering the tilting cylinder under the floorboard and employing a fully enclosed driver’s cab. A lower damping device in the lifting system minimises mast shock and vibration, thus preventing crash noise when goods are dropped.
Foot space is substantially increased by elevating the steering unit and utilising a suspension-type inching control. The operation space is enlarged through a raised overhead guard and the use of a large arc shape for the guard’s front leg. A semi-suspension seat, a steering wheel with a smaller diameter, electro-hydraulic direction changing, and an automotive-type double joystick switch significantly enhance driving comfort.
The front view for the operator is enhanced by the installation of a wide-view mast and lowering the dashboard. The rear view is optimised through CAE-designed counterweight for better visibility.
Loading capacity is increased, stability and reliability are enhanced. A hot air reflow isolating device, optimal thermal dissipation duct, and an aluminium plate-fin type radiator improve cooling efficiency and ensure engine reliability. An automotive-type oil filling cap and an optimally designed oil filling channel structure enhance the truck’s overall safety. A constant displacement pump load sensing steering system boosts lifting speed and lowers hydraulic oil temperature. The optimal design of critical components such as the frame, mast, overhead guard, and steering axle enhances the truck’s safety and reliability. Repositioning the truck’s centre of gravity improves loading capacity, stability, and safety.
The enlarged internal space makes maintenance of the engine and gearbox more accessible. An increased hood opening angle facilitates quick and convenient maintenance.

CPCD20/25/30/35/38

Identification

Model CPCD20 CPCD25 CPCD30 CPCD35 CPC(D)38
Rated capacity 2000 kg 2500 kg 3000 kg 3500 kg 3800 kg

Dimensions

Height (lowered / lifted) 2150 / 3000 mm 2150 / 3000 mm 2170 / 3000 mm 2170 / 3000 mm 2170 / 3000 mm
Length (with / without fork) 3500 / 2580 mm 3708 / 2638 mm 3818 / 2748 mm 3836 / 2766 mm 3860 / 2790 mm
Overall width 1150 mm 1150 mm 1225 mm 1225 mm 1225 mm

Performance

Travel speed (laden / unladen) 17 / 19 km/h 17 / 19 km/h 19 / 20 km/h 19 / 19 km/h 20 / 19 km/h
Lift speed (laden / unladen) 560 / 600 mm/s 560 / 600 mm/s 500 / 550 mm/s 400 / 420 mm/s 450 / 480 mm/s
