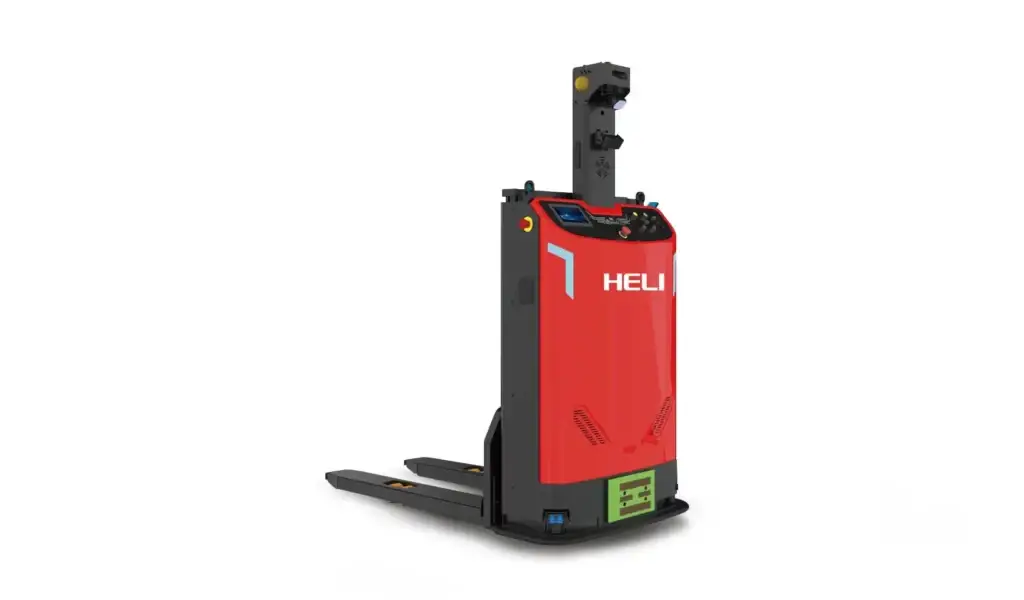

HELI 2t Slim Stacker AGV

I Series

CHARACTERISTICS

BENEFITS

Design

High mobility and excellent trafficability with a compact body design, allowing smaller right-angle stacking aisles. Rated load capacity of up to 2 t with a compact body width of 930 mm and a minimum turning radius of 1,250 mm, allowing smooth navigation in narrow aisles. Maximum lift height of 3,300 mm, customizable for different load carriers

Performance and Handling

Positioning accuracy within ±10 mm and travel speed up to 1.5 m/s. Suspension drive system automatically adjusts traction under varying loads. Ensures smooth and reliable operation on ramps and uneven surfaces across diverse conditions

Operation and Efficiency

Equipped with 3D vertical obstacle avoidance camera, ensuring safe operation and a secure working environment.

EDA20-2A

Identification

Model	EDA20-2A
Rated capacity	2000 kg

Dimensions

Height	1950 mm
Length	1705 mm
Width	930 mm

Performance

Navigation method	Laser Navigation
Max. travelling speed (loaded / unloaded)	3.6 / 5.4 km/h
Battery voltage / rated capacity	24 / 200 V/Ah
