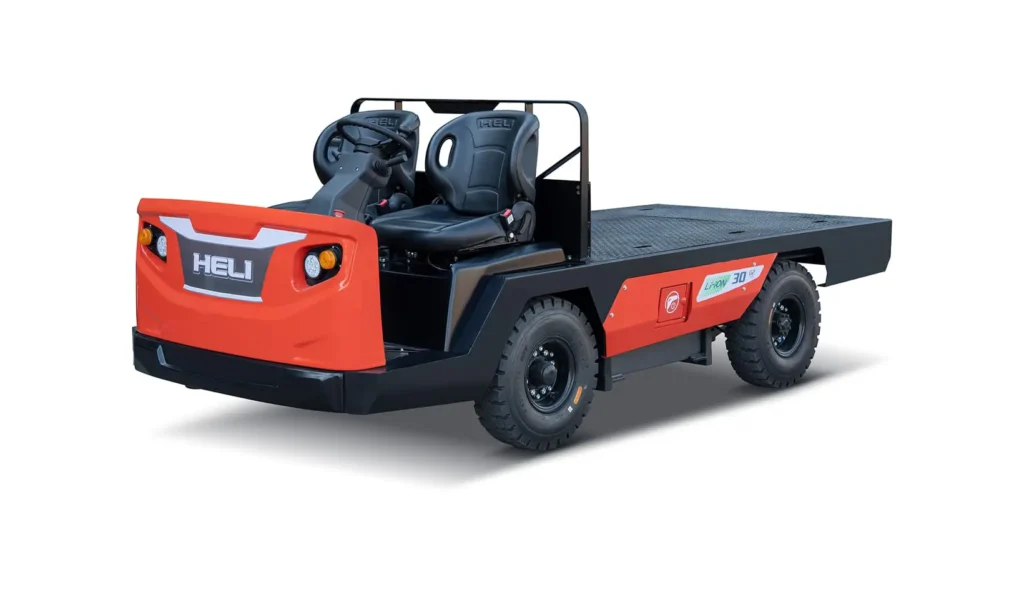

HELI 1.0-5.0 TONNE G BATTERY UTILITY VEHICLE

G Series

Embracing the future of eco-conscious operations with a robust electric motor, HELI’s G-Series Electric Tractor stands as the ultimate choice for sustainability. With it’s low maintenance requirements, it allows for minimal downtime and operational costs, allowing for a consistant and reliable performance over time.

CHARACTERISTICS

BENEFITS

Battery Specifications

The B010 series operates on a 24V lithium battery, while the standard for the rest of the series is a 48V lithium battery. Offers a normal discharge cycle of 4000 times, with battery capacity retaining up to 75%.

Warranty and Performance

High-performance lithium battery assemblies come with a long warranty of 5 years or 10,000 hours.

Safety Measures

Features multi-node security with closed-loop protection, ensuring real-time, multi-state vehicle safety.

BD10-50

Model	BD10-JB3Li	BD20-JA3Li	BD30-JA3Li	BD40-JA3Li	BD50-JA3Li
Capacity	1 T	2 T	3 T	4 T	5 T
Wheelbase	1150 mm	1650 mm	1650 mm	1810 mm	2100 mm
Min ground clearance	80 mm	130 mm	130 mm	120 mm	120 mm
Overall length	2770 mm	3635 mm	3635 mm	3990 mm	4595 mm
Overall width	1000 mm	1400 mm	1400 mm	1500 mm	3200 mm
Min outside turning radius	3000 mm	3100 mm	3100 mm	4400 mm	4800 mm
Total weight	730 kg	1220 kg	1330 kg	1900 kg	2240 kg
Tyre size (front)	5.00-8-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR
Tyre size (rear)	5.00-8-10PR	6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR
Battery capacity	24/200 V/AH	48/200 V/AH	48/200 V/AH	48/252 V/AH	48/320 V/AH
Drive motor rated power	3 kW	4 kW	4 kW	6 kW	6 kW

GOT A QUESTION?

FREQUENTLY ASKED QUESTIONS

What is the capacity of the BD10-50 model?

The capacity of the HELI G-Series BD10-50 model is from 1000kg-5000kgs.

What are the key features of Heli Electric tow tractors?

Heli Electric tow tractors typically feature a robust electric motor, durable construction, ergonomic design for operator comfort, easy manoeuvrability, and a towing capacity suitable for various loads.

Is specialised charging infrastructure necessary for electric tow tractors?

While electric tow tractors can be charged using conventional electrical outlets, most choose to establish dedicated charging infrastructure to enhance the charging process’s efficiency and guarantee the presence of readily available charging stations.
