HELI 2.0-7.0 TONNE G2 BATTERY TOW TRACTOR

G2 Series

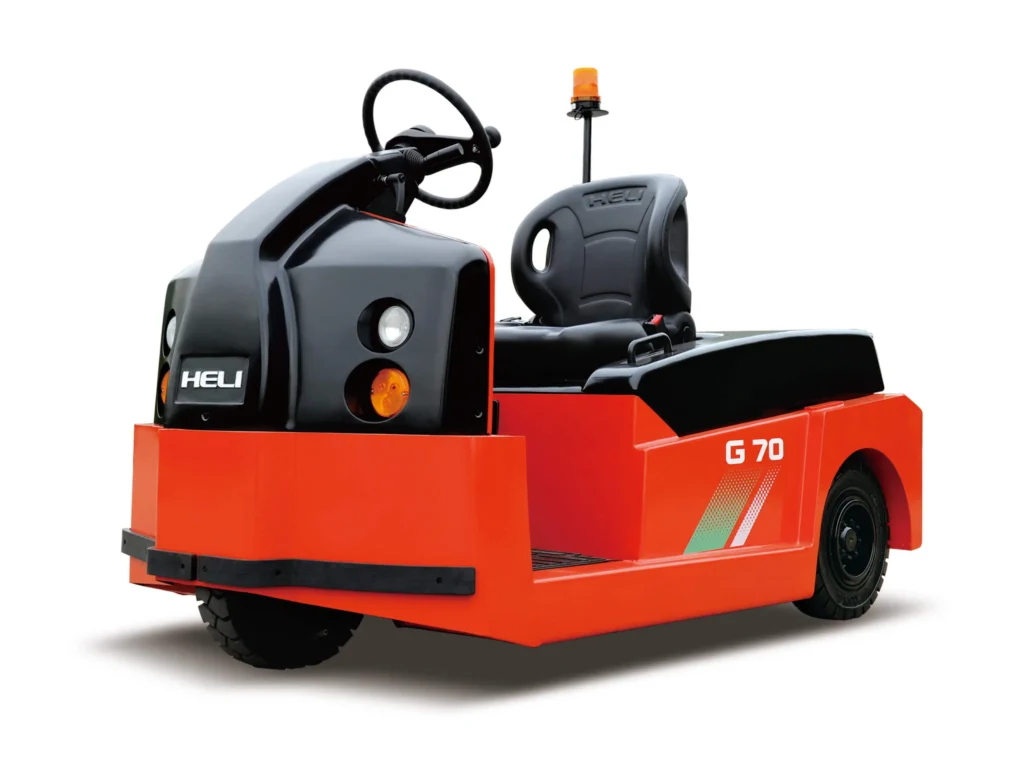

Heli 2 to 7 tonne battery powered tow tractor

CHARACTERISTICS

BENEFITS

Allows the driver to comfortably operate all buttons and pedals, significantly reducing driving fatigue. Features a low pedal, making it very convenient for the driver to get on and off, enhancing accessibility.
Ensures safe and reliable operation by limiting the turning speed, enhancing safety during maneuvering. Offers strong climbing capabilities and abundant power, facilitating superior performance across various surfaces.
Adoption of AC Drive and Steering Control System: Results in high efficiency and low energy consumption, optimising the vehicle’s operational efficiency. Two-Way Micro-Movement Function: Enables forward and backward micro-movements, allowing a single person to attach and detach the pin effortlessly, streamlining operations. Optional Convenient Traction Mechanism: Allows the driver to operate the traction pin without leaving the seat, adding to operational convenience and efficiency.

QYD20-70S-J2G2 Specifications

Model QYD20S-J2G2 QYD30S-J2G2 QYD40S-J2G2 QYD50S-J2G2 QYD60S-J2G2 QYD70S-J2G2
Rated towing weight 2000 kg 3000 kg 4000 kg 5000 kg 6000 kg 7000 kg
Max towing force 3000 N 3100 N — 6100 N 8000 N 8100 N
Height 1270 mm 1270 mm 1270 mm 1270 mm 1540 mm 1540 mm
Length 1740 mm 1740 mm 1950 mm 1950 mm 2060 mm 2060 mm
Width 860 mm 860 mm 960 mm 960 mm 1050 mm 1225 mm
Travel speed (laden/unladen) 9/12 km/h 9/12 km/h 9/12 km/h 8/12 km/h 9/14 km/h 9/14 km/h
Gradability (laden/unladen) 10/20% 6/20% 6/20% 5/20% 6/20% 4/20%
