HELI 2.0 TONNE G2 HEAVY DUTY SIT-DOWN REACH FORKLIFT

G2 Series

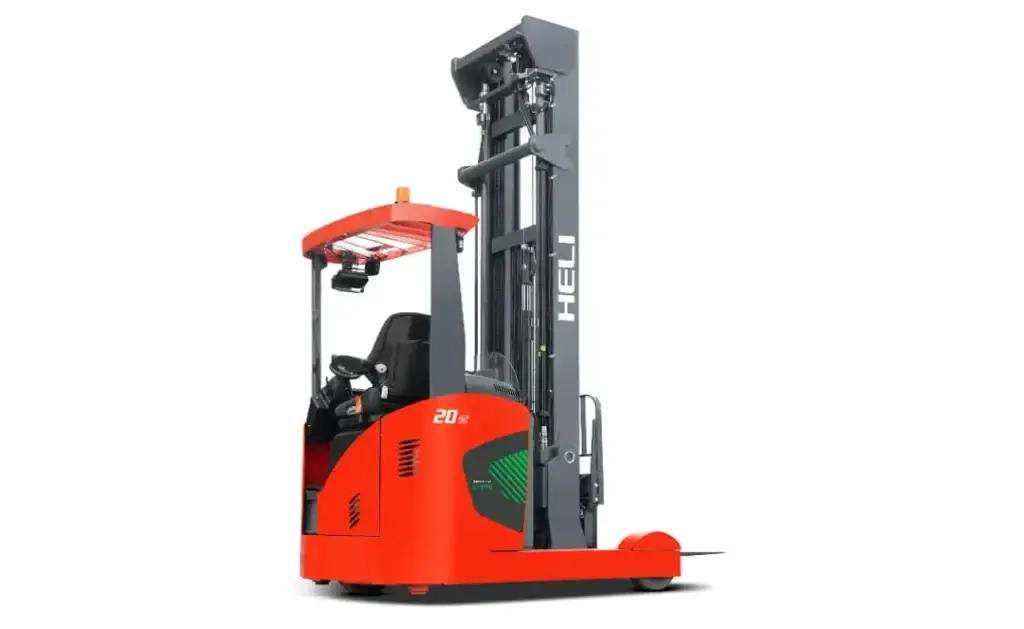

Heli G2 series heavy duty sit-down reach forklift truck with 2 tonne lift capacity

CHARACTERISTICS

BENEFITS

Employs three-phase AC motor control for manoeuvring, carrying, and steering, offering outstanding acceleration and quick response to changes in direction. Boasts a maintenance-free motor devoid of carbon brushes, guaranteeing an extended service life and lower maintenance expenses. Energy regeneration during deceleration extends operational hours. Maximum travel speed without load increased by 20%, and with load by 27%.
Incorporates a newly designed hydraulic system for enhanced efficiency. High-power lifting motor with a MOSFET speed control electric controller. New, quieter gear pump model. Maximum lifting speed without load increased by 15%, and with load by 25%. The rear wheels are capable of 90° rotation, with maximum turning not extending the tyres beyond the truck’s rear, effectively reducing the vehicle’s length for simplified logistics and transportation.
ZAPI controllers for travel, lifting, and steering motors. CAN bus technology for superior system communication. Emergency power-off for both main and control circuits. Parking brake designed for use on slopes and operation sequence protection for added safety. Travel speed control and electric controller self-protection features.
EPS (Electric Powered Steering) provides easy, flexible, highly efficient, and quiet operation. Steering motor controller includes an automatic centering function. Real-time switchability between 180° and 360° steering modes. Automatic limitations on speed and acceleration during steering adjustments.
Simplified control of hydraulic functions with intuitive operating units. Proportional solenoid valve ensures stable and comfortable lowering actions.

CQD20

Identification

Model CQD20
Rated capacity 2000 kg

Dimensions

Height (lowered / lifted) 2334 / 4600 mm
Length (with / without fork) 2624 / 2096 mm
Overall width 1270 mm

Performance

Travel speed (laden / unladen) 12 / 14 km/h
Lift speed (laden / unladen) 0.5 / 0.5 m/s
