HELI 20.0-46.0 TONNE G DIESEL FORKLIFT

G Series

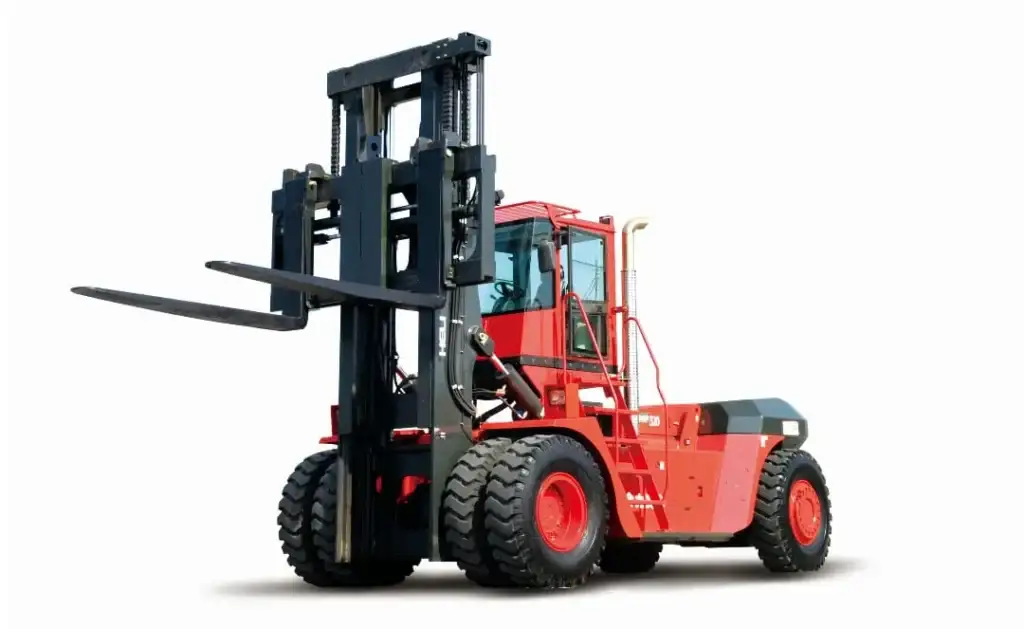

Heli G series heavy duty diesel forklifts with lift capacities from 20 to 46 tonnes

CHARACTERISTICS

BENEFITS

Features a robust structural design for prolonged use. Simplifies and enhances the efficiency of daily inspections. Offers enhanced protective capabilities and cooling efficiency.
Optimises power delivery with high efficiency. Incorporates a hydraulic dynamic load variable control system for 35-46 tonne models and a constant displacement system for 20-32 tonne models. Designed with a focus on lightweight construction.
Facilitates easy entry and exit. Provides a smaller turning radius for improved manoeuvrability. Delivers an expansive field of vision and a more comfortable driving experience.
Ensures greater reliability and operational safety. Offers an Operator Presence System (OPS) as an optional feature. Equipped with a wet type drive axle for enhanced performance.

CPCD200-320 Specifications

Model CPCD200 CPCD250 CPCD280 CPCD300 CPCD320
Rated capacity 20000 kg 25000 kg 28000 kg 30000 kg 32000 kg
Overall height 3995 mm 3995 mm 4120 mm 4120 mm 4120 mm
Overall length 8472 mm 8472 mm 9200 mm 9200 mm 9200 mm
Overall width 3040 mm 3040 mm 3460 mm 3460 mm 3460 mm
Travel speed (laden / unladen) 23 / 26 km/h 23 / 26 km/h 22 / 25 km/h 22 / 25 km/h 22 / 25 km/h
Lift speed (laden / unladen) 280 / 310 mm/s 280 / 310 mm/s 280 / 310 mm/s 280 / 310 mm/s 280 / 310 mm/s

CPCD350-460 Specifications

Model CPCD350 CPCD380 CPCD400 CPCD420 CPCD460
Rated capacity 35000 kg 38000 kg 40000 kg 42000 kg 46000 kg
Overall height 4120 mm 4120 mm 4600 mm 4850 mm 4850 mm
Overall length 9200 mm 9870 mm 9870 mm 10370 mm 10370 mm
Overall width 3460 mm 4120 mm 4120 mm 4120 mm 4120 mm
Travel speed (laden / unladen) 22 / 25 km/h 23 / 26 km/h 23 / 26 km/h 23 / 26 km/h 23 / 26 km/h
Lift speed (laden / unladen) 280 / 340 mm 280 / 340 mm 280 / 340 mm 240 / 320 mm 240 / 320 mm
