HELI 4.0-5.0 TONNE K2 LPG/DIESEL FORKLIFT

K2 Series

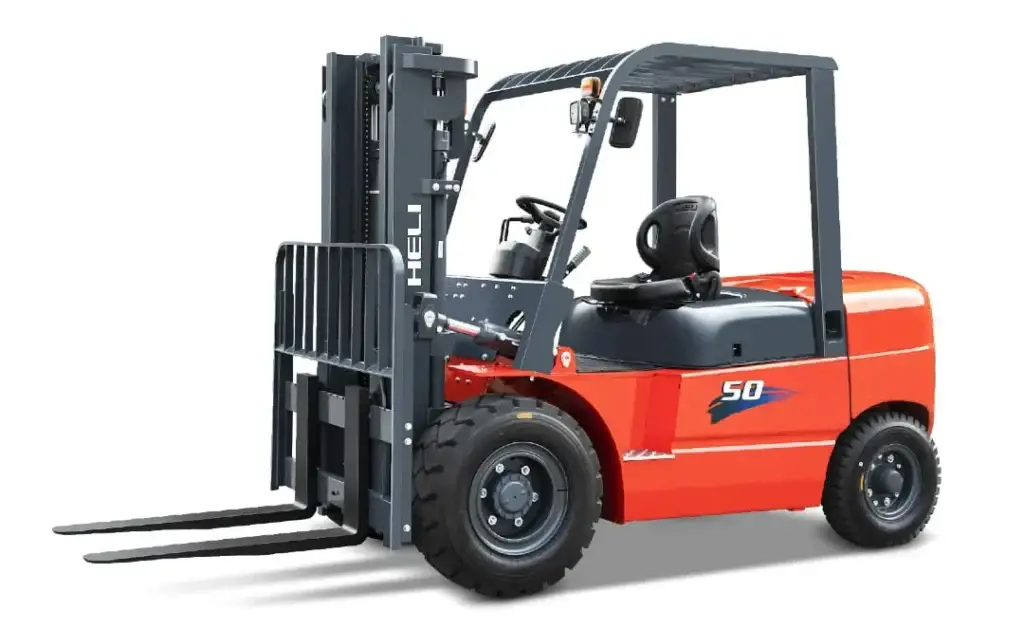

Heli K2 Series internal combustion forklift with lift capacities ranging from 4 to 5 tonnes

CHARACTERISTICS

BENEFITS

The brake system has been upgraded, significantly enhancing both braking reliability and comfort. The hydrodynamic truck features a hydraulic-assisted braking system, ensuring more stable and reliable braking performance. An enlarged, high-positioned air inlet grid facilitates smoother air intake, allowing for more efficient use of engine power. A large screen LCD instrument comprehensively monitors the truck’s state. High-strength alloy steel used in the mast channel steel improves the tensile strength and safety factor of the chain.
The hydraulic system benefits from enlarged pipeline diameters and optimised arrangement, extending the lifespan of hydraulic components. The introduction of a double pump confluence hydraulic system saves energy and enhances efficiency. LED lights come as a standard feature, offering energy savings, environmental friendliness, and high reliability. A standard load sensor prioritises steering to minimise energy loss.
An optimised cooling channel and the standard enlarged aluminium plate fin radiator significantly boost cooling performance. A standard air cleaner alarm reminds the user to maintain the air cleaner promptly. An optimised bi-wiring screw lock mechanism simplifies locking adjustments. The hydraulic truck now includes a new intelligent shift system to prevent starting in second gear.
Optimised brake and accelerator pedals enhance driving comfort. A smaller diameter steering wheel reduces operation intensity and increases convenience for the driver. An integrated handle switch (on hydrodynamic trucks) and standard features like lifting and cylinder lower buffers provide a new driving experience. Features such as an enlarged grained leather anti-skid handle, semi-enclosed seat, instrument backlight design, anti-skid metal pedal, and hood lock enhance operational comfort.
The controller is located inside the balance weight for easy maintenance. A removable oil tank and floorboard simplify maintenance tasks.

CPCD40/45/50

Identification

Model (diesel) CPCD40 CPCD45 CPCD50
Rated capacity 4000 kg 4500 kg 5000 kg

Dimensions

Height (lowered / lifted) 2275 / 3000 mm 2275 / 3000 mm 2275 / 3000 mm
Length (with / without fork) 4310 / 3240 mm 4310 / 3240 mm 4310 / 3240 mm
Overall width 1480 mm 1480 mm 1480 mm

Performance

Travel speed (laden / unladen) 24 / 25 km/h 24 / 25 km/h 24 / 25 km/h
Lift speed (laden / unladen) 530 / 560 mm/s 530 / 560 mm/s 530 / 560 mm/s
