HELI 45.0 TONNE REACH STACKER

HELI Reach Stackers are designed to effortlessly lift and maneuver heavy containers with precision and finesse. With their robust build and powerful engines, these machines make light work of stacking and organising containers in ports, terminals, and industrial yards.

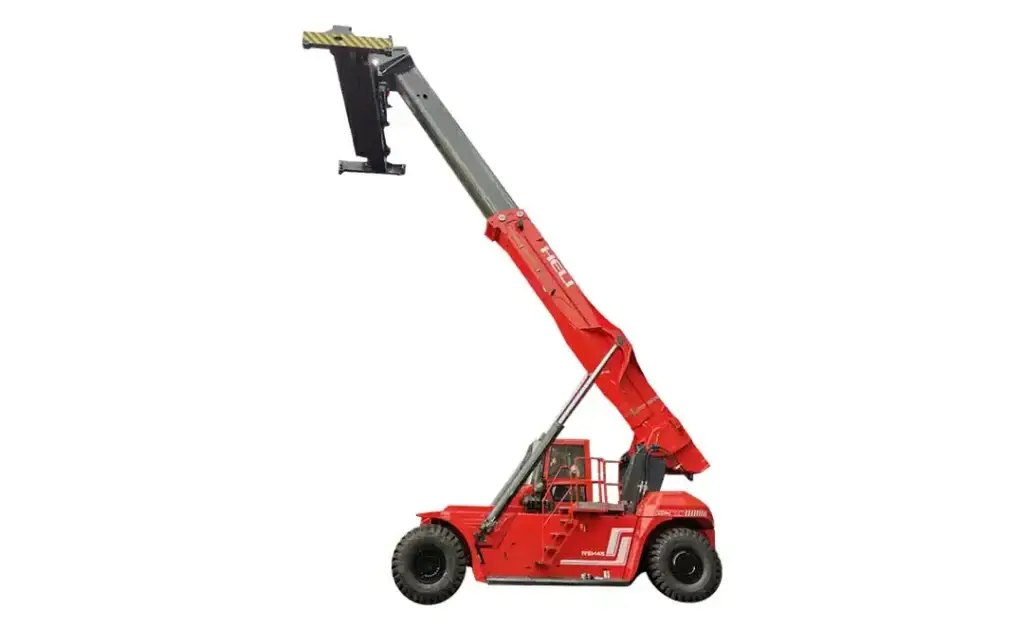

Heli 45 tonne heavy duty container reach stacker

CHARACTERISTICS

BENEFITS

Features imported VOLVO TAD1151VE and CUMMINS QSM11 diesel engines. Meets EU Stage IIIA and American Tier 3 environmental regulations for off-highway vehicles and equipment. Utilises imported special accessories for engines to guarantee reliable operation and ease of maintenance.
Equipped with the TE27 from DANA, an advanced electronically controlled transmission. Capable of self-inspection, automatic control, diagnostics, and self-protection. Supports communication via CAN-bus for comprehensive operational management.
Employs a modular design and central control with CAN-BUS. Integrates engine, transmission, braking, hydraulic, and spreader systems. Offers cohesive control for improved efficiency and effectiveness. The CAN-BUS panel provides online monitoring, settings adjustment, queries, self-diagnosis, and self-protection.
Incorporates PARKER products, featuring the P3 series constant power variable pump. Includes flow regeneration technology and an LS load-sensing system. Adjusts power output based on load for optimal efficiency and energy savings. Hydrostatic power steering with load sensing ensures effortless steering. Small turning radius enhances vehicle flexibility and manoeuvrability.

PRODUCT FEATURES

Ensures operators can execute tasks

confidently and efficiently

Operator comfort and safety are paramount in the design of HELI Reach Stackers. The ergonomically optimised cabin offers a spacious environment with adjustable seating, intuitive controls, and excellent visibility, ensuring operators can execute tasks confidently and efficiently.

  • 45 ton load capacity
  • Heavy-duty box-type chassis for long-lasting, high performance
  • Kessler drive axel for maintenance free requirements
  • Powered by a diesel engine by both Volvo and Cummins
  • Self-cleaning hydraulic cooling system extends intervals between oil changes

RSH45 Specifications

Model RSH4528 RSH4532 RSH4536
Rated capacity (first / second / third row) 45000 / 28000 / 14000 kg 45000 / 32000 / 16000 kg 45000 / 36000 / 19000 kg
Lifting height (first row) 15050 mm 15050 mm 15050 mm
Container spreader (side shift) +800 ~ -800 mm +800 ~ -800 mm +800 ~ -800 mm
Container spreader (rotation) -95 ~ +185º -95 ~ +185º -95 ~ +185º
Length 11670 mm 11670 mm 11670 mm
Width 4060 mm 4060 mm 4060 mm
