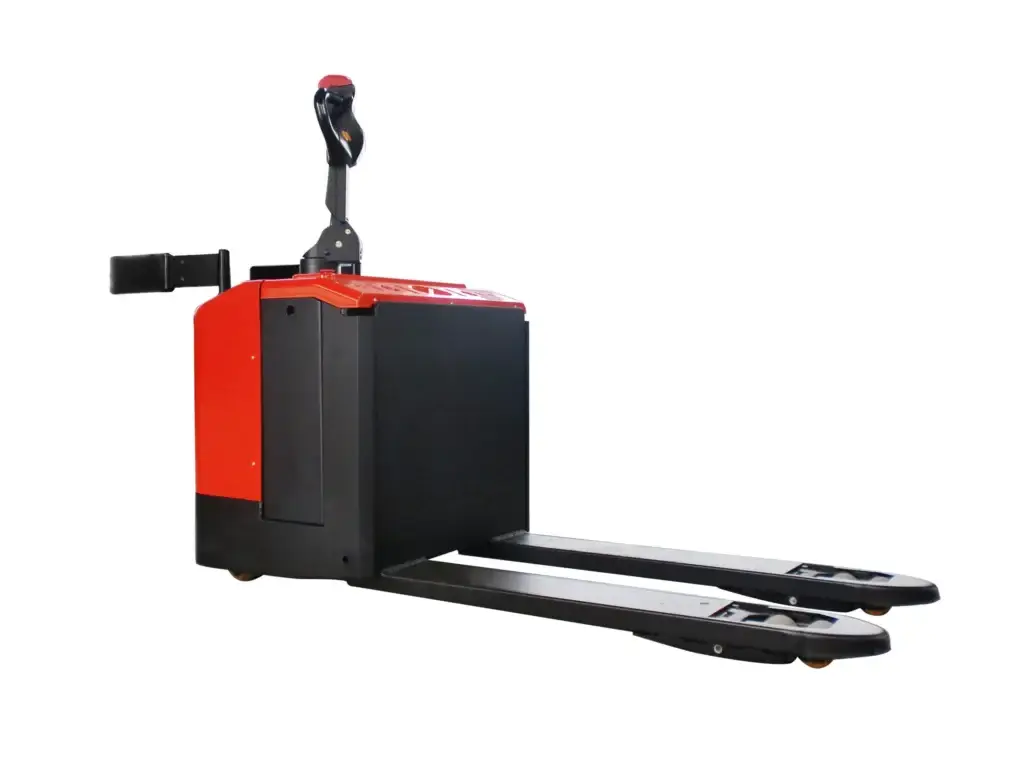

HELI CBD20/25/30-460 ELECTRIC PALLET JACK

This lithium ion powered Pallet Jack is a heavy duty work horse for your warehouse and in handling material. Designed for unloading trucks, deliveries and everyday operations, the HD Lithium Pallet Jack will be the ultimate tool in your arsenal for operation efficiency and minimising your downtime.

CHARACTERISTICS

BENEFITS

Enhanced Efficiency

An electronic power steering system that is both light and operates quietly. The AC driving system eliminates the need for carbon brushes, making it maintenance-free. Includes an automatic lifting limit for improved safety and energy efficiency. Patented design for drive unit floating bodies. Equipped with a side-way battery for easy replacement. Utilises an electromagnetic regenerative braking system. The LFP model lithium batteries offer fast charging and high efficiency.

Advanced Safety Features

Curve automatic deceleration devices enhance safety during turns. Stepless speed control system ensures safe and quiet operation. The controller is equipped with multiple automatic protection features. Includes an emergency reversing device/emergency brake switch for added safety.

CBD15/18/20J-LI3

Identification

Model	CBD15J-LI3	CBD18J-LI3	CBD20J-LI3
Rated capacity	1500 kg	1800 kg	2000 kg

Dimensions

Overall length	1550 mm	1550 mm	1550 mm
Overall width	550 / 685 mm	550 / 685 mm	550 / 685 mm
Fork dimensions	50 / 150 / 1150 mm	50 / 150 / 1150 mm	50 / 150 / 1150 mm
Travel speed (laden / unladen)	4.2 / 4.5 km/h	4.2 / 4.5 km/h	4.2 / 4.5 km/h
Max. gradeability (laden / unladen)	5 / 10%	5 / 10%	5 / 10%

PRODUCT FEATURES

increase your lift capacities and operational run-times

HELI’s 2-3t Electric Pallet Jack is specifically designed to take the strain off your body and increase your ease of use, no matter the industry.

2000-3000kg lifiting capacity

Portable lithium electric bag, easy to open the cover and replace the battery

Simple, reliable and easy to operate

Standard equipped with the emergency stop switch and emergency reverse device

GOT A QUESTION?

FREQUENTLY ASKED QUESTIONS

What is a Li-ion pallet jack?

A Li-ion pallet jack is a type of powered pallet jack that utilises lithium-ion battery technology for its power source. It is designed to lift and move palletised loads within a warehouse or storage facility, offering enhanced efficiency and reduced environmental impact compared to traditional lead-acid battery-powered pallet jacks.

How long does it take to charge the lithium battery of a pallet jack?

Charging times for lithium pallet jacks vary, but they generally have shorter charging cycles compared to lead-acid batteries. Some lithium pallet jacks can be charged fully within 1 to 2 hours, providing quick turnaround times for continuous operation.

Can the lithium battery be replaced in a pallet jack?

Lithium batteries in pallet jacks are typically designed to be non-user-replaceable due to safety concerns. If a lithium battery needs replacement, it should be done by a certified technician or the manufacturer’s authorised service provider to ensure proper handling and disposal of the old battery.

Are lithium pallet jacks more environmentally friendly?

Yes, lithium pallet jacks are considered more environmentally friendly than lead-acid battery-powered pallet jacks. Lithium batteries are recyclable, have a longer lifespan, and do not contain hazardous materials such as lead and acid, reducing the environmental impact associated with battery disposal.
