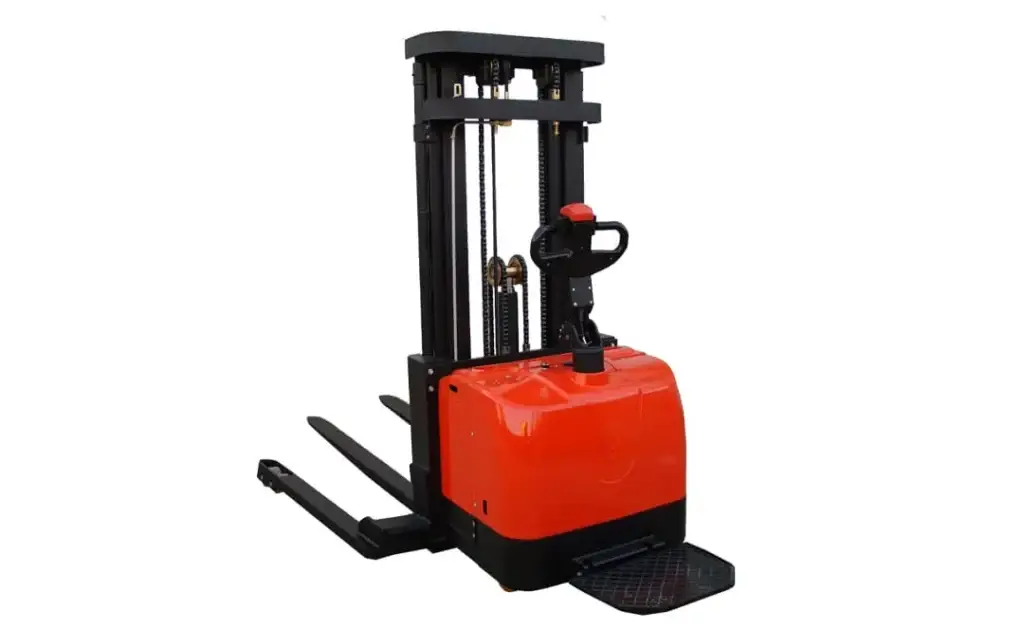

HELI CTD16-960H WALKIE STACKER FORKLIFT

Heli CTD16-960H walker stacker forklift order picker

CHARACTERISTICS

BENEFITS

Equipped with an electronic power steering system that is both efficient and operates silently. A two-way magnetic valve with three variable drop speeds offers superior handling. The drive unit’s floating bodies, featuring a patented design, significantly enhance performance. The AC drive system is brushless, eliminating the need for maintenance and ensuring reliability over time. Features an electromagnetic regenerative braking system for effective energy recuperation. An automatic lifting limitation with a proximity switch prolongs durability. LFP lithium batteries provide quick charging capabilities and exceptional efficiency.
Curve automatic deceleration devices safely reduce speed during turns. Vehicle automatically slows down when carrying loads at elevated heights for increased safety. Stepless speed control system delivers both quiet and secure operation. Controller includes several automatic protection mechanisms for all-round safety. Emergency reversing functionality and brake switch are provided for urgent situations. High position automatic reduction feature lowers speed during upper-height lifts for safer handling.

CTD16-960H

Identification

Model CTD16-960H

Dimensions

Max. extended height 5000 / 5200 / 5500 mm
Overall length 1910 mm
Overall width 1470 mm

Performance

Travel speed (laden / unladen) 5 / 5.5 km/h

Weight

Service weight with battery 1510 kg
