HELI CTD16-D920/960/360 WALKIE STACKER FORKLIFT

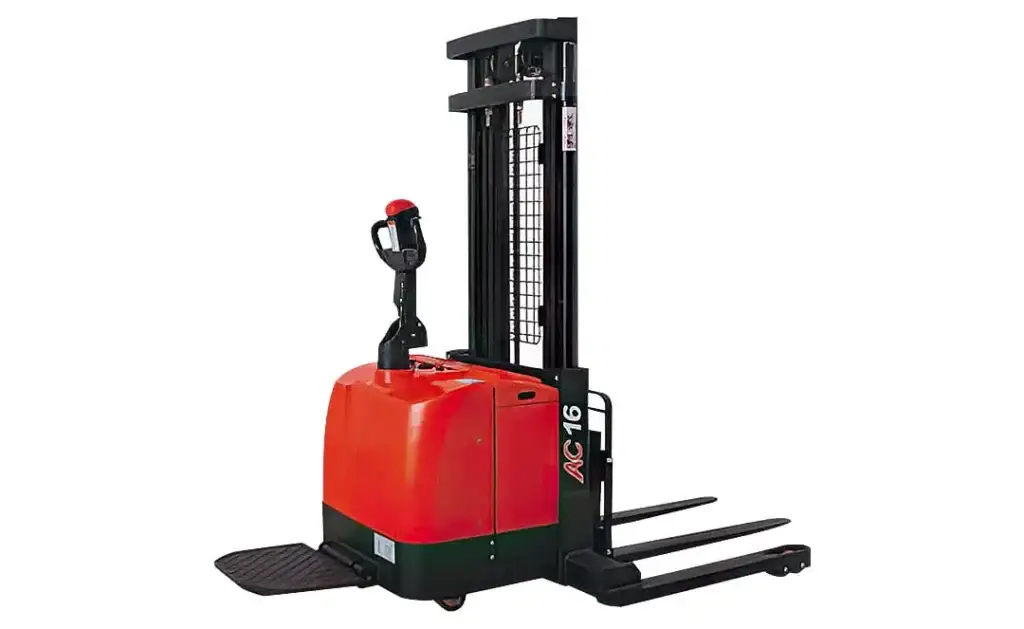

Heli CTD16-D920/960/360 walkie stacker forklifts

CHARACTERISTICS

BENEFITS

Lightweight electronic power steering system with quiet operation. Features a dual-mode magnetic valve offering three speeds for precise control. Patented design of drive unit floating bodies enhances overall performance. Brushless AC driving system requires no maintenance, providing dependable long-term service. Utilises an electromagnetic regenerative braking system for efficient energy recuperation. Automatic lifting limit equipped with a proximity switch enhances the lifespan. LFP lithium batteries ensure swift charging and superior efficiency.
Curve automatic deceleration devices safely reduce speed during turns. Vehicle automatically slows down when carrying loads at elevated heights for increased safety. Stepless speed control system delivers both quiet and secure operation. Controller includes several automatic protection mechanisms for all-round safety. Emergency reversing functionality and brake switch are provided for urgent situations. High position automatic reduction feature lowers speed during upper-height lifts for safer handling.

CTD16-D920/960/360

Identification

Model CTD14-920 CTD16-920 CTD16-960 CTD16-360

Dimensions

Max. extended height 1900 / 2500 / 3000 / 3500 / 3800 / 4100 / 4500 mm 1900 / 2500 / 3000 / 3500 / 3800 / 4100 / 4500 mm 4200 / 4400 / 4700 / 5000 / 5200 / 5500 mm 5800 / 6000 / 6300 mm
Overall length 2005 / 2425 mm 2005 / 2425 mm 2073 / 2493 mm 2073 / 2493 mm
Overall width 1470 mm 1470 mm 1470 mm 1470 mm

Performance

Travel speed (laden / unladen) 6 / 6 km/h 6 / 6 km/h 6 / 6 km/h 6 / 6 km/h

Weight

Service weight with battery 1276 kg 1276 kg 1577 kg (lead-acid)
1456 kg (lithium)
1675 kg (lead-acid)
1536 kg (lithium)
