Distributor of HELI Forklifts in Australia and New Zealand

HELI 4.0-5.0 TONNE G3 4-WHEEL BATTERY FORKLIFT

G3 Series

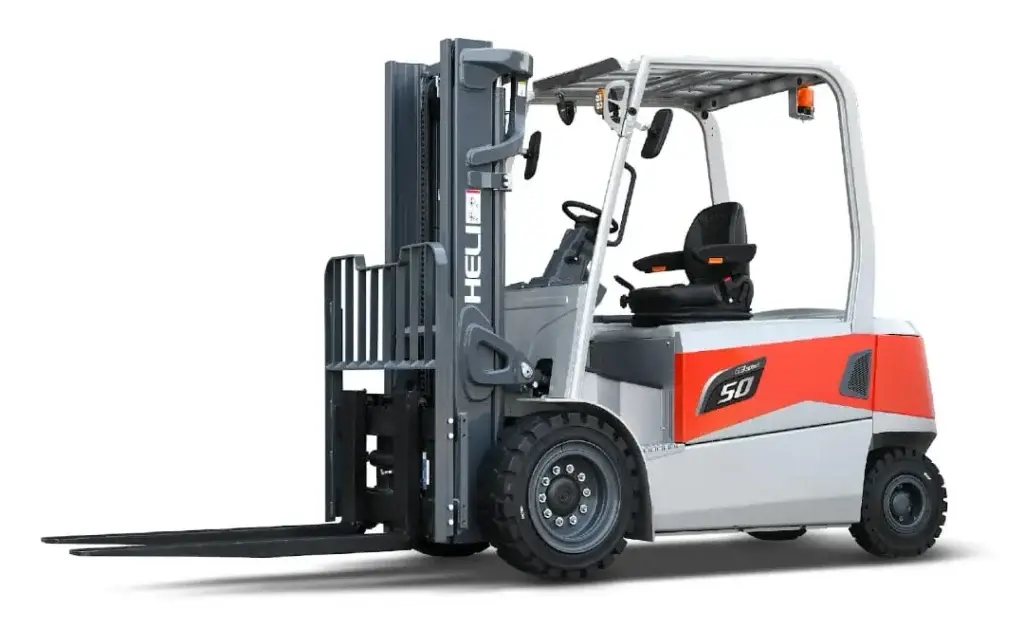

Heli G3 series 4 to 5 tonne electric forklifts

CHARACTERISTICS

BENEFITS

The truck utilises a maintenance-free integrated axle that has been proven in the market and tested for durability. Features oil-cooled wet disc brakes that require no maintenance and maintenance-free AC motors for both driving and pump operations. A world-renowned controller is employed for enhanced performance. A large, smart instrument panel provides comprehensive monitoring of the truck’s status, ensuring it is both safe and reliable. A high-precision angle potentiometer enhances steering sensitivity and accuracy. LED lighting throughout offers high brightness and longevity while being more energy-efficient. Special solid tyres designed for electric trucks reduce rolling resistance, lowering energy consumption during driving.
A tail-free structure lowers the centre of gravity, enhancing lateral stability. The high-strength, integrated-type welded overhead guard increases safety. The standard configuration includes a side-pulling method for battery changing, streamlining the process and boosting efficiency. The battery is centrally positioned to lower the centre of gravity and enhance stability. The rear axle’s high pivot point further improves the truck’s lateral stability. Automatic deceleration during steering and mast lifting buffering are also featured to heighten operational safety.
The truck is equipped with LED lights for greater energy efficiency. An independent steering system offers both energy savings and high efficiency. Special tyres designed for electric trucks reduce energy consumption during travel. Steering unit is designed to require super low torque, further conserving energy.
Mast lifting and falling buffering ensure safe and comfortable operation. The truck has a lower pedal height and provides ample space for entry and exit. – Steering activated by the steering wheel simplifies the steering process. A suspension seat and wide-view mast enhance the driving experience. The optimal battery layout and counterbalance design improve rear visibility. Lower positioning of the tilting cylinder increases legroom, adding to the overall comfort.

CPD40/50

Identification

Model CPD40 CPD45 CPD50
Rated capacity 4000 kg 4500 kg 5000 kg

Dimensions

Height (lowered / lifted) 2240 / 4235 mm 2240 / 4235 mm 2230 / 4225 mm
Length (without fork) 2920 mm 2920 mm 2920 mm
Overall width 1350 mm 1350 mm 1500 mm

Performance

Travel speed (laden / unladen) 13 / 14 km/h 13 / 14 km/h 13 / 14 km/h
Lift speed (laden / unladen) 310 / 450 mm/s 280 / 450 mm/s 260 / 450 mm/s
