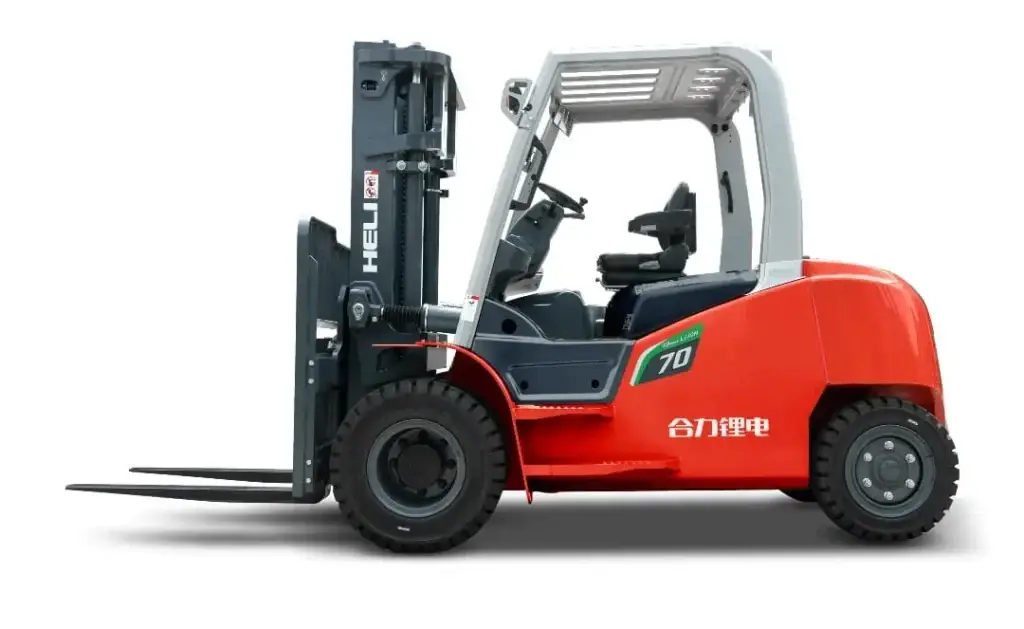

HELI 6.0-10.0 TONNE G3 4-WHEEL BATTERY FORKLIFT

G3 Series

CHARACTERISTICS

BENEFITS

Efficiency

The forklift boasts powerful dual drive and excellent gradeability, featuring dual drive power, imported motors, and imported wheel reducers. This combination not only provides robust power but also enhances the truck’s safety and stability. The lithium battery-powered forklift comes standard with double gun charging, significantly shortening charging times. High-density lithium batteries support use and charging at any time, enabling efficient and uninterrupted operation throughout the day.

Safety

The truck is equipped with intelligent safety features including automatic parking, a turning speed limit, limit buffering, operation protection, and a control strategy. These systems work together to ensure a safe operating environment.

Reliability

Utilising imported drive axles and motors, the forklift’s performance is both stable and reliable. Wet negative braking ensures safety and reliability. An innovative mast structure design enhances overall strength and rigidity, while the structural design of the welded large oil tank improves the frame’s strength and the hydraulic oil’s heat dissipation. The truck can operate in -20°C cold storage for 6 hours and remain parked for 12 hours without failure, ensuring continuous operation. New steering axle design further guarantees safety and reliability.

Maintenance and Convenience

The cab layout is optimised, with the battery positioned directly under the engine room and a wide hood opening angle for easy daily inspections and maintenance. The controller’s placement on the counterweight is ideal for heat dissipation and maintenance convenience. Battery side changing capability allows for easy switching between lead-acid and lithium batteries, meeting the diverse needs of different customers and situations.

CPD60/70/85/100

Identification

Model (lithium)	CPD60	CPD70	CPD85	CPD100
Rated capacity	6000 kg	7000 kg	8500 kg	10000 kg

Dimensions

Height (lowered / lifted)	2480 / 3000 mm	2480 / 3000 mm	2700 / 3000 mm	2950 / 3000 mm
Length (with / without fork)	4657 / 3437 mm	4662 / 3442 mm	4870 / 3650 mm	5062 / 3842 mm
Overall width	2045 mm	2045 mm	2165 mm	2165 mm

Performance

Travel speed (laden / unladen)	15 / 16 km/h	15 / 16 km/h	14 / 15.5 km/h	13 / 15.5 km/h
Lift speed (laden / unladen)	0.35 / 0.46 m/s	0.32 / 0.46 m/s	0.3 / 0.4 m/s	0.25 / 0.35 m/s
