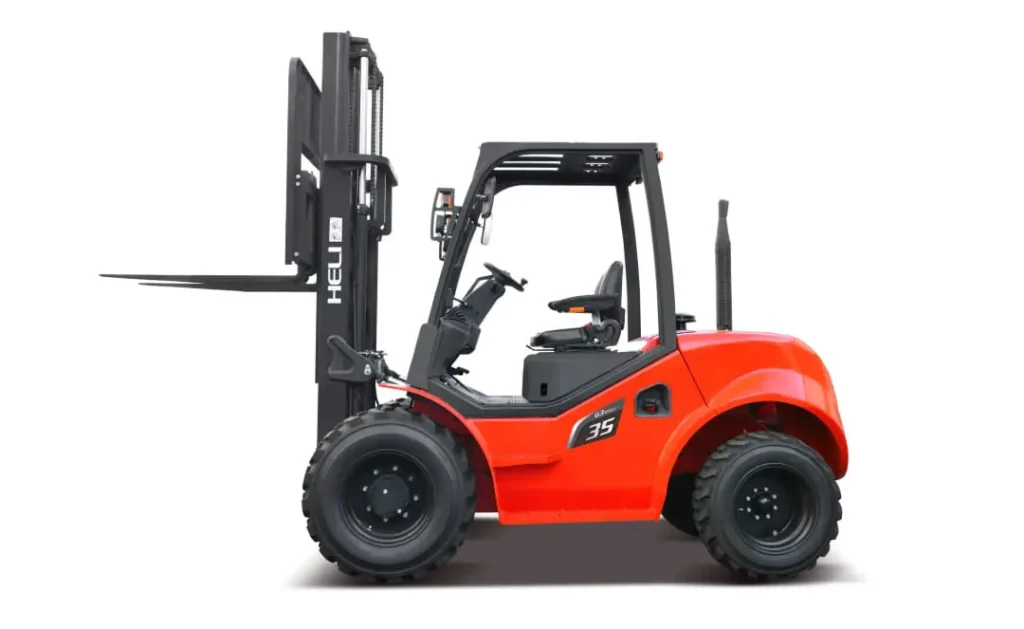

HELI 2.0-3.5 TONNE G3 ROUGH TERRAIN FORKLIFT

G3 Series

HELI Rough Terrain Trucks are designed to excel where traditional forklifts fall short. With their robust construction and high ground clearance, these trucks effortlessly navigate uneven surfaces, construction sites, and outdoor environments, ensuring your material handling operations remain unhindered.

CHARACTERISTICS

BENEFITS

Design

Features a fashionable and aesthetically pleasing streamlined design. Delivers stable and reliable performance. Option for dual drive or four-wheel drive with off-road tyres, suitable for fields, farms, orchards, and challenging road conditions.

Power and Efficiency

Equipped with a multi-position gearbox and flexible connection for versatile operation. Offers dual drive or four-wheel drive options, prioritising energy conservation and efficiency. The drive axle is flexibly connected with an ultra-high configuration, enhancing off-road capabilities. Hydraulic system improvements include a load sensing valve for faster lifting speeds. The lightweight mast and widened frame, along with an optimised upper beam design, contribute to a high carrying capacity.

Reliability

Fitted with off-road wide base tyres featuring large treads for improved traction. The radiator structure is enhanced, and the cooling system optimised for superior heat dissipation. – An in-position sensing system effectively prevents misoperations. The optimised drive line system offers greater ground clearance and a lower centre of gravity, enhancing stability and passability. Pedal mechanism optimisation includes a direct connection of the inching pedal to the inching valve. Features an IP65-rated digital LCD meter for durability. The sealing structure incorporates a 24° cone rubber hose and an “O” type sealing ring for an improved seal.

CPCD20 / 25 / 30 / 35

Model (Standard Dual Drive)	CPCD20	CPCD25	CPCD30	CPCD35
Rated capacity	2000 kg	2500 kg	3000 kg	3500 kg
Height (lowered/lifted)	2265/3000 mm	2265/3000 mm	2265/3000 mm	2265/3000 mm
Length (with/without fork)	4210/3140 mm	4210/3140 mm	4214/3144 mm	4254/3184 mm
Overall width	1640 mm	1640 mm	1640 mm	1640 mm
Travel speed (laden/unladen)	18/18 km/h	18/18 km/h	18/18 km/h	18/18 km/h
Lift speed (laden/unladen)	480/520 mm/s	480/520 mm/s	480/520 mm/s	480/520 mm/s

GOT A QUESTION?

FREQUENTLY ASKED QUESTIONS

What are rough terrain forklifts?

Rough terrain trucks are a line of specialised forklifts designed to operate in demanding outdoor environments. They are equipped with features that enable them to handle uneven terrain, rough surfaces, and rugged conditions.

Are there specific maintenance requirements for HELI's rough terrain forklifts?

Maintenance requirements for HELI’s rough terrain forklifts typically include regular servicing, inspections, and checks of critical components like hydraulics, tires, and the engine. Following the manufacturer’s maintenance schedule is essential for reliable operation.
