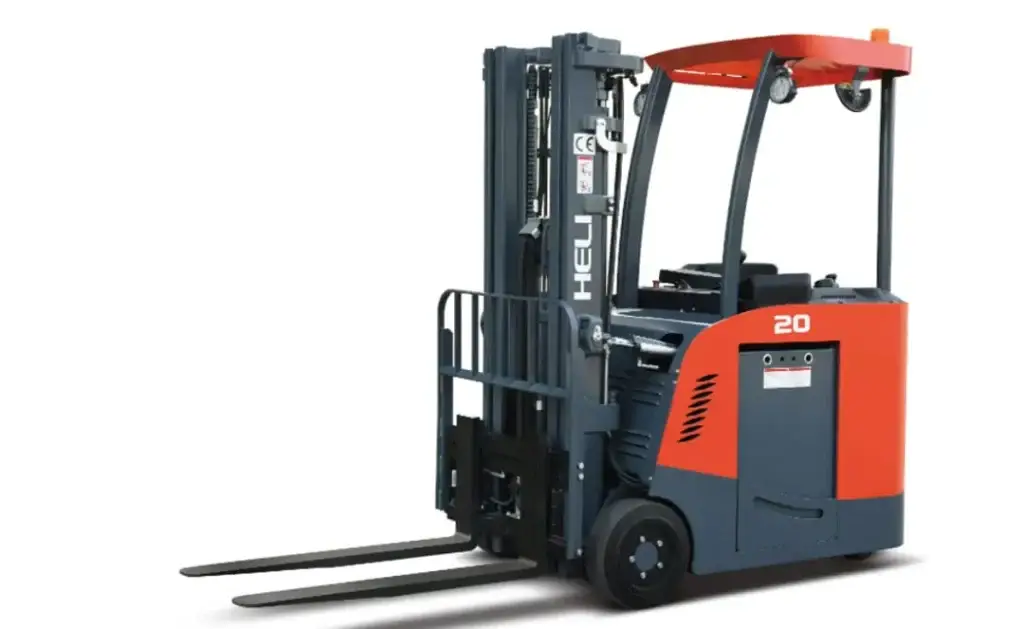

HELI 1.5-2.0 TONNE G3 STAND-UP COUNTERBALANCE FORKLIFTS

G3 Series

CHARACTERISTICS

BENEFITS

Efficiency

The forklift is equipped with a fully hydraulic priority steering system that supplies oil on demand, thus reducing vehicle energy consumption. A high-precision angle potentiometer enhances steering sensitivity and accuracy. LED lighting throughout offers high brightness and longevity while being more energy-efficient. Special solid tyres designed for electric trucks reduce rolling resistance, lowering energy consumption during driving.

Flexibility

Its narrow width makes the truck ideally suited for operation in tight aisles. The large-angle steering axle provides a smaller turning radius, ideal for loading and unloading in confined spaces.

Safety

The truck features an intelligent stabilisation system, adaptive speed limiting for various applications, intelligent limit buffering, intelligent operation protection, intelligent control strategies, intelligent steering deceleration, and a lithium battery with automatic heating at low temperatures for superior low-temperature performance.

Maintenance

This forklift operates efficiently in cold storage environments down to -20°C. The reinforced cast steering axle and optimally designed mast ensure operational safety. Equipped with a ZF double drive axle, dual AC motors, a reducer, differential, and oil-cooled disc brakes, it offers high efficiency, low noise, maintenance-free operation, and reliable quality.

Economics

HELI lithium battery forklift trucks stand out for their lifecycle cost advantages. Compared to internal combustion forklifts, they offer the benefits of being noise-free, pollution-free, having minimal vibration, and being easy to operate. When compared to lead-acid battery forklifts, lithium battery models feature rapid charging and the ability to charge at any moment, making them more suited for multi-shift operations. HELI lithium battery forklifts are maintenance-free, boast high power conversion efficiency, and have lower overall operation costs.

CPDSR15/18/20

Identification

Model (lithium)	CPD15SQ	CPD16SQ	CPD18SQ	CPD20SQ
Rated capacity	1500 kg	1600 kg	1800 kg	2000 kg

Dimensions

Height (lowered / lifted)	2175 / 3300 mm	2175 / 3300 mm	2175 / 3300 mm	2175 / 3300 mm
Length (with / without fork)	2850 / 1930 mm	2850 / 1930 mm	2970 / 2055 mm	2970 / 2055 mm
Overall width	1060 / 1076 mm	1060 / 1076 mm	1060 / 1120 mm	1060 / 1120 mm

Performance

Travel speed (laden / unladen)	16 / 17 km/h	16 / 17 km/h	16 / 16 km/h	16 / 16 km/h
Lift speed (laden / unladen)	0.45 / 0.65 km/h	0.45 / 0.65 km/h	0.41 / 0.6 km/h	0.4 / 0.6 km/h
