HELI 1.6-1.8 TONNE G SINGLE REACH FORKLIFT

G Series

Charged by state-of-the-art lithium-ion battery technology, the HELI Li-ion Reach Truck delivers unmatched energy efficiency and prolonged operating hours, guaranteeing uninterrupted productivity.

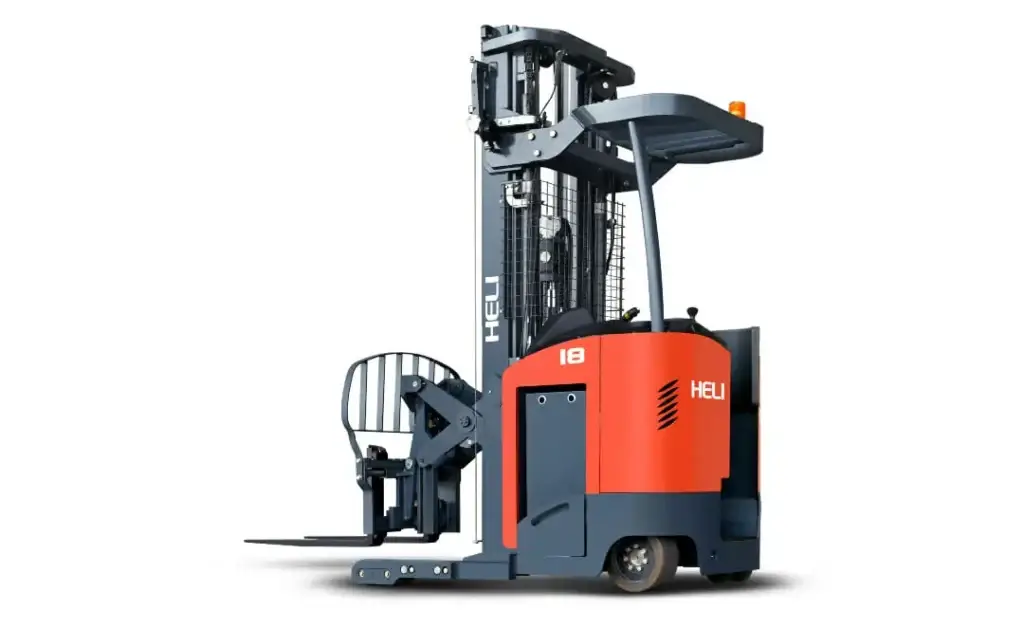

Heli G series single reach forklift trucks with lift capacities from 1.6 to 1.8 tonnes

CHARACTERISTICS

BENEFITS

Rear padding and armrests are designed to minimise fatigue. The multifunction control is ergonomically crafted for straightforward usage. All controls are strategically placed within easy reach to alleviate body strain. The compartment floor’s angled and spring-suspended design helps reduce leg and back discomfort.
A large, stylishly rounded overhead guard with strategically angled bars maximises visibility. A newly designed, wide-view mast equipped with special chains significantly enhances the forward view for the operator.
A side stance enhances visibility in both forward and reverse directions. An automatic park brake activates when the operator exits the compartment or turns off the forklift. Programmable automatic deceleration in turns improves safety. Standard warning lights and an Operator Presence System (OPS) are included for enhanced safety measures.
A small turning radius ensures flexible and effortless steering. With ZAPI control and AC motors, the drive and lift systems are optimally configured for peak efficiency and performance. A large battery capacity extends the duration of single-shift operations.
The hydraulic system is optimised for greater energy efficiency. LED lights reduce lighting energy consumption by 80%. Regenerative motor braking conserves more energy during braking cycles. Speed and acceleration settings are programmable for ultimate energy efficiency.
A side door provides convenient access to the drive motor and gearbox. Chassis components are easily accessible, thanks to removable top and front covers. Battery changes are simplified with a standard battery roller and side removal system.

PRODUCT FEATURES

The epitome of advanced

technology and accuracy

HELI’s Li-ion Reach Truck provides unparalleled efficiency in the workplace, allowing for continuous productivity with extended operational hours.

  • 1600-1800kgs lift capacity
  • Safety
  • Energy efficienct
  • Operator comfort
  • Improved operator’s view

CQD16-18X1

Identification

Model CQD16X1-GB2R CQD18X1-GB2R
Rated capacity 1600 kg 1800 kg

Dimensions

Height (lowered / lifted) 1490 / 5330 mm 1490 / 5330 mm
Truck body length (without fork) 1815 mm 1865 mm
Truck body width 842 mm 842 mm

Performance

Travel speed (laden / unladen) 10.5 / 11.8 km/h 10.5 / 11.8 km/h
Lift speed (laden / unladen) 330 / 510 mm/s 330 / 510 mm/s

GOT A QUESTION?

FREQUENTLY ASKED QUESTIONS

Lithium-ion batteries do not require a separate charging room, but safety considerations include proper ventilation, fire protection measures, and following manufacturer-recommended charging practices.
Lithium-ion reach trucks are typically more energy-efficient, which translates to lower energy consumption and reduced operating costs over time.
While lithium-ion reach trucks are commonly used indoors, some models are suitable for outdoor applications with appropriate protection against the elements and terrain.
