HELI CQD15H-J21 WALKIE REACH STACKER FORKLIFT

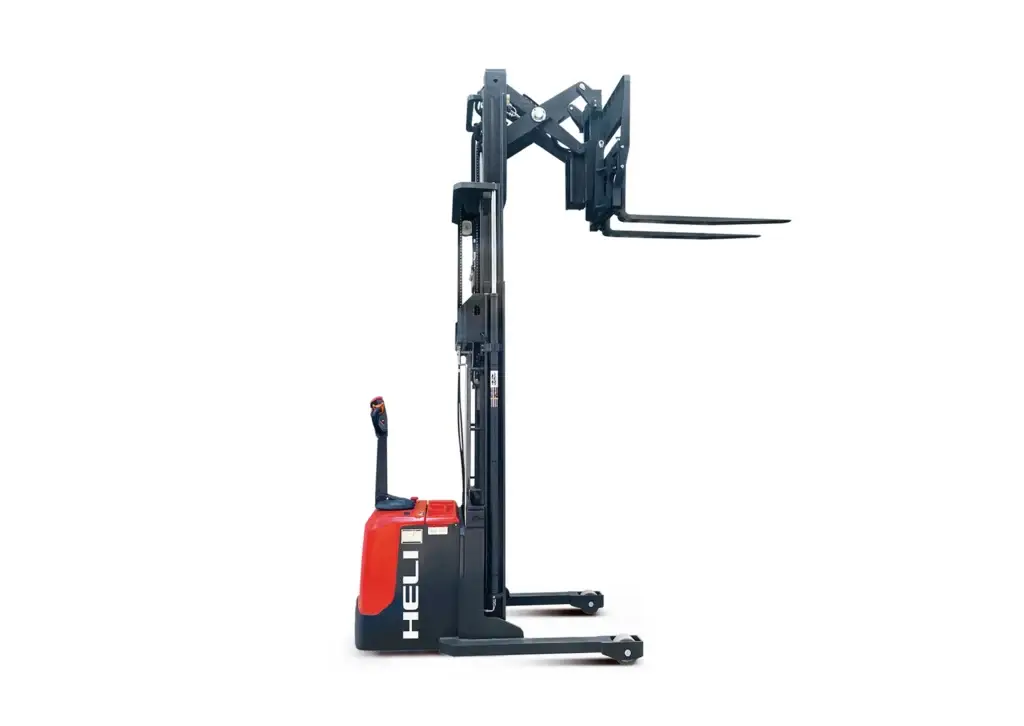

HELI CQD15H-J21 walkie stacker / pallet stacker

CHARACTERISTICS

BENEFITS

Features an electronic power steering system that is both light and operates quietly. Incorporates a two-way magnetic valve with three drop speed modes for enhanced control. Drive unit floating bodies boast a patented design for improved performance. The AC driving system is brushless and maintenance-free, ensuring long-term reliability. Employs an electromagnetic regenerative braking system for energy recovery. Includes an automatic lifting limit with a proximity switch for extended durability. The LFP model lithium batteries offer rapid charging and are highly efficient.
Curve automatic deceleration devices increase safety by reducing speed in turns. The vehicle automatically decelerates when the load is at a higher position for added safety. A stepless speed control system ensures operations are both safe and quiet. The controller is equipped with multiple automatic protection features for comprehensive safety. An emergency reversing device/emergency brake switch is available for critical situations. High position automatic reduction device reduces speed when lifting to higher heights for safer operation.
Tight turning radius suitable for narrow aisle operations. Lightweight chassis with broad leg support for optimal floor stability. Designed for precise fork-forward load handling in complex operations.

CQD15H-J21

Identification

Model CQD15H-J21

Dimensions

Max. extended height 6430 mm
Overall length 2325 mm
Overall width 1140 mm

Performance

Travel speed (laden / unladen) 5.2 / 5.5 km/h

Weight

Service weight with battery 2145 kg (150AH battery) 2170 kg (175AH battery) 2185 kg (200AH battery) 2130 kg (230AH battery)
